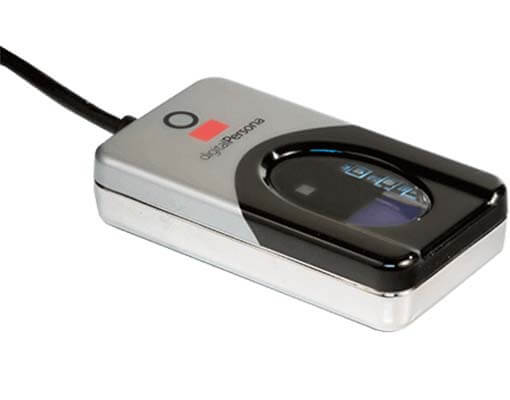

Procare Biometric ID Pad / Fingerprint Reader

  • Small form factor
  • Durable SteelCoat coating withstands 4 million touches
  • High quality fingerprint image
  • Works well with dry, moist or rough fingerprints
  • Superior ESD resistance
  • Encrypted fingerprint data
  • Latent print rejection
  • Counterfeit finger rejection
Procare Software Integrated Fingerprint Reader

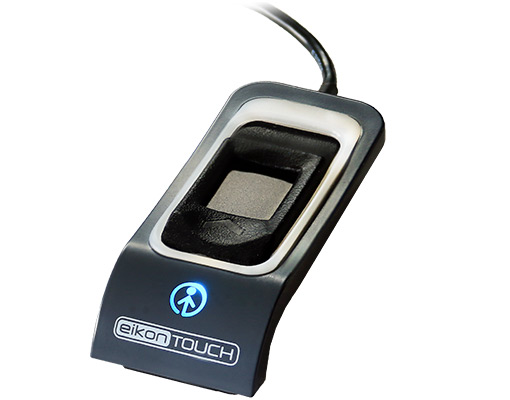

The EikonTouch® 510 USB capacitive fingerprint reader from Crossmatch provides quick and reliable biometric authentication. Its patented technology accurately senses the ridges and valleys of the fingerprint to detect fine print details allowing it to capture a wide range of fingerprints, including hard to read ones. The reader features a rugged SteelCoat coating which can withstand more than 4 million touches.

The EikonTouch 510 fingerprint reader uses the same patented technology built into many of today’s fingerprint-enabled notebook PC’s, keyboards, POS terminals, door locks, handheld ID terminals and more. With thousands of units deployed worldwide in various types of environments, the Eikon® family of scanners are field proven, high performing, reliable and secure devices.

Specs and Features

Compact Form Factor

Fingerprint Sensor TCS1S (touch)
Package Size (mm) 84 x 33.8 x 14.3
Scanned Finger Area (mm) 12.8 x 18
Pixel Array Size (pixels) 256 x 360
Weight (g) 74
Cable Length (cm) 50 or 180

High Performance

Acquisition Speed 5.5 frames/sec
Image Resolution 508 ppi
Grayscale Image Depth 8-bit (256 levels)
Interface USB 2.0 full speed (Type A) or Micro USB (Type B)

Secure

USB Data Encryption AES-56 (no export restriction)
AES-128 (export restrictions)
On-board Data Storage 256 bytes for private data (optional)

Ruggedized

ESD Protection IEC 61000-4-2 level 4: 15kV air, 8kV contact
Ingress Protection IP 63 for moisture and dust protection
Operating Temperature 0° to + 40° C
Protective Coating > 4 million touches
Humidity 5% to 93% RH @ 30° C
Certification CE/FCC/USB2.0/WHQL

Efficient Power Management

Power Imaging ~ 120 mA @ 5V
Power Standby ~ 1 mA @ 5V
FAQ

Is the actual fingerprint of each person recorded?

No. Procare does not record the fingerprint of anyone. Instead a mathematical calculation (algorithm) is used, based on a unique set of data points within the fingerprint, to identify each person. In other words, a number (a value) is assigned to represent each fingerprint.

Can anyone else access the fingerprint information?

No. The print itself is not stored. Procare knows how to interpret the value assigned to represent each fingerprint in order to confirm that an authorized person is checking the children in. This is the only purpose of the fingerprint reader.

Does a fingerprint reader help prevent identity theft?

Yes, because only the person to whom the fingerprint belongs can check their children in and out. No one can pretend to be you since they cannot have the same fingerprint. Although a password or PIN can be lost or stolen – a fingerprint cannot.

Are there concerns about germs or hygiene?

No more so than opening a doorknob, using a keyboard, handling money or any other task where a surface is touched by multiple people. The fingerprint reader may be easily cleaned – see Use & Cleaning Instructions.
